Low Emission Hose End Safety Adapters

Low Emission Adapters (1.18 cc at disconnect) designed to provide quick and easy filling of DOT cylinders with minimal release of product on disconnect. This adapter may be used with dispensing systems in conjunction with RegO 7901T Series Quick Acting Shut-Off Valve. Balanced, light weight design for filling into 20 # – 200 # cylinders.

Redundant Safety Feature – Will only open when connected to valve. Meets California Air Resources Board (CARB) Low Emission Standards.

Item #	Application	Inlet Connection	Outlet Connection	Materials
7193D-10L	Filling of DOT cylinders with POL Connections	1/4″ MNPT	M. POL (CGA 510)	Brass & Stainless Steel
7193U-10L	Filling of DOT cylinders with Type 1 Connections	1/4″ MNPT	Type 1 Connection (15/16) F. ACME	Brass

Excess Flow Valve for Autogas Dispensing Systems  3272H

Especially designed for high flow / high differential dispensing systems. Can also be used for filling, liquid withdrawal and vapor equalizing, in container or line applications. Solid brass construction, stainless steel spring, highest flowing valve in the market. Meets UL requirements.

Emergency Shutdown Procedure Decals

Item # D53 – 8.5″ x 11″, White with red lettering             Item #94-D-53 – 8.5″ x 11″, Red with white lettering

RegO LV4403BD Series Dielectric Second Stage Regulators

RegO’s Dielectric second stage regulators are designed to reduce first stage pressure normally 10 PSIG down to burner pressure, normally 11″ w.c. and are ideal for medium commercial installations, multiple cylinders installations and normal domestic loads.

RegO Dielectric second stage regulators are engineered to isolate potential electrical current from metallic piping before entering a building. The use of a separate dielectric union is not necessary because the regulator contains a dielectric union as part of the inlet assembly. Available in both SAE Flare and F.NPT inlet connection.

Features

• F. NPT Dielectric Union is made of brass, with inlet portion made of plated steel
• M. SAE Flare inlet connection made of solid brass
• All second stage features are the same as LV4403B Series

Thermaflow

Frame Mounted Cooling Unit: THERMAFLOW hydraulic coolers are designed to give you top performance for your hydraulic drive.

These coolers are designed to be as light weight as possible yet still provide you with the performance you expect. The SS934 hydraulic cooler is an extremely versatile unit, able to support applications such as chemicals, compressed gasses, food grade, crude oil, vacuum pumps and combo drives. By adding a light weight THERMAFLOW unit to your system, you save considerable amount of weight on your vehicle, allowing you to haul more product. A top feature of the SS934 is its compact design, allowing users to mount the unit directly to the frame rail without taking up valuable space. At only 9.25″ wide, it will fit all of your applications. If mounting behind the cab is what you need, we offer a mounting bracket kit that will simplify your installation.

The Model 934 will drive most 3″ and 4″ product pumps and compressors, with options for multi-pump applications.

WESROC Tank Monitoring Systems

WESROC offers propane and fuel tank remote monitors over cellular networks and  global satellite networks with simple setup, accurate readings, timely reports, simple online setup and web and mobile availability of readings.

VENTUR-EVAC Propane Tank Evacuator
The VENTUR-EVAC is designed FOR the propane industry BY propane people. Evacuating a propane tank has never been easier. Welded steel construction and weighing only 6 pounds, the VENTUR-EVAC is highly portable and easy to carry. The lightweight design and ease of use will render current evacuation methods obsolete.
Reduce Labor Costs: Tank evacuations can now be performed by your delivery drivers while they are on their routes. By carrying the VENTUR-EVAC in the tool box of your bulk truck, additional service personnel are not required.

Tank Overfills: Immediately remedy overfills by connecting the VENTUR-EVAC to remove excess gallons. No more calling back to the shop to dispatch service personnel for costly pump outs or flare offs. Gauge or Valve Repairs: Efficiently evacuate propane into the bulk truck for valve or gauge repairs. Accomplish this task with your drivers while making deliveries.

Tank Setting:  Keep your two man tank setting crew on the move by utilizing the bulk truck to evacuate the current tank and filling the new tank set.

Temporary Sets/Construction:  When the time comes to pick up temporary tank sets, they will undoubtedly have too much propane remaining in the tank to transport. Dispatch one bulk truck and one driver to evacuate all of the temporary tanks to ready them for transport.

Excess Flow: The VENTUR-EVAC will not activate the excess flow valve.

Backcheck Valve: A backcheck valve stuck in the closed position can be remedied in seconds. Closing one ball valve reverses the flow of liquid, immediately unseating the backcheck valve. Current methods require costly disconnecting, and reconnecting to unseat.

NEW! Rechargeable LED Road Flares

An Essential Safety Tool for Every Driver!

Features: 18 Orange LEDs 9 Flash Patterns High Visibility Heavy Duty Design Rechargeable, Reusable Waterproof, Floats Magnetic Base – Flare Attaches Quickly to Metal Surfaces US DOT Compliant Retail Packaged

Item #LED Includes: 1 Heavy Duty Road Flare Magnetic Charging Base USB Plug Wall Charging Adapter Automobile Charging Adapter Carrying Bag Item #LED6 Includes: 6 LED Flares 1 Recharging Set Durable Carrying Case

NEW! Dispensers

IPS-9899KX Commercial Single Side Load Dispenser

Features:

Liquid Controls MA4 5-40 GPM electronic temperature compensated meter

Tri-Pod break-away/shear valve

Explosion-proof electric solenoid valve

Pulse out to communicate with a fuel management system

Custom graphics (customer to provide graphics in an Adobe Illustrator format)

Stainless steel panels

Hose retractor with hose support

All units are test pumped and calibrated prior to shipment

Hose, pullaway and fill nozzle sold separately

IPS-9899KXD Dual Commercial Side Load Dispenser

Features:

Dual side loading (hose connections on both sides of the unit for filling 2 vehicles at a time)

Dual Liquid Controls MA4 5-40 GPM electronic Temperature compensated meters

Tri-Pod break-away/shear valve

Explosion-proof electric solenoid valve

Pulse out to communicate with a fuel management system

Custom graphics (customer to provide graphics in an Adobe Illustrator format)

Stainless steel panels

Hose retractor with hose support

All units are test pumped and calibrated prior to shipment

Hose, pullaway and fill nozzle sold separately

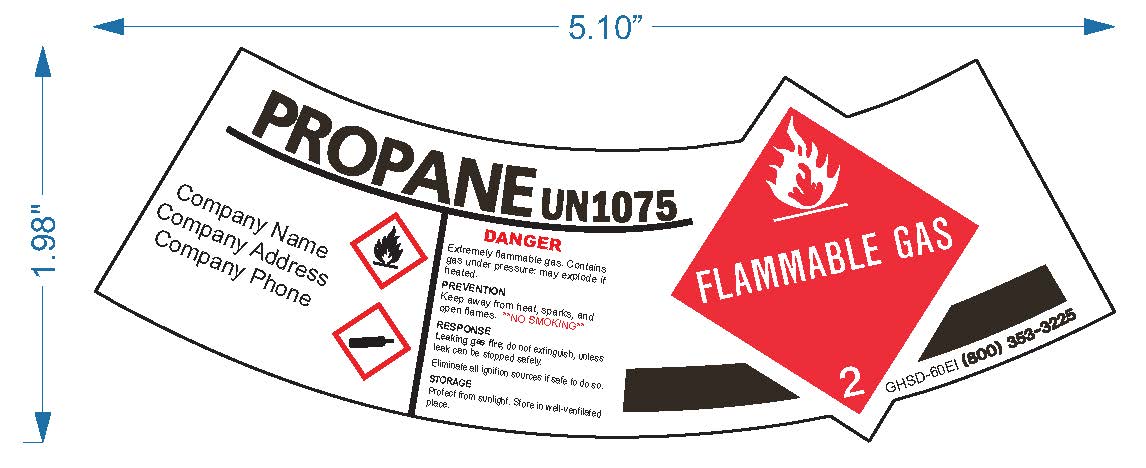

Propane Cylinder Decals

Make Sure You Meet All New Requirements for the Global Harmonization System!

OSHA has adopted new hazardous chemical labeling requirements as part of its recent revision of the Hazard Communication Standard, 29 CFR 1910.1200 (HCS), bringing it into alignment with the United Nations’ Globally Harmonized System of Classification and Labelling of Chemicals (GHS). The revised HCS changes the existing Hazard Communication Standard (HCS/HazCom 1994) from a performance-based standard to one that has more structured requirements for the labelling of chemicals.

When ordering, please specify your text, exactly as you would like it printed on the decal. Must include a deliverable address.

GHSD-60BI 2.24″h x 5.96″w Propane Cylinder Decal with Your Custom Information 500 piece minimum	GHSD-60EI 1.98″h x 5.10″w Propane Cylinder Decal with Your Custom Information 500 piece minimum	GHSD-6065BI 4.2″h x 8.04″w Propane Cylinder Decal with Your Custom Information. 500 piece minimum	GHSD-625BI 4″h x 8″w Propane Cylinder Decal with Your Custom Information. 500 piece minimum

Gasguard GG20DNS Nozzle – Perfect for AutoGas Applications

The GG20DNS nozzle is suited for refueling of passenger vehicles by untrained personnel. It incorporates a patented Dual Nose piece which significantly reduces the amount of user error when operating the nozzle. It creates a positive seal to the customer’s vehicles even if they have not tightly screwed the nozzle to the fill point. If the nozzle is not screwed on completely and the lever is pulled, there is no effect of flow rate as the Dual Nose piece compensates for the changed operating situation.

• Flow rate of 60L/min at 12bar system pressure
• Release Volume on valve closure of 1.7cm ³
• Dual Nose piece for added customer safety
• Customer experiences a lower lever pressure than GG20
• Magnet option for dispensers with reed switch technology
• New guided extended thread assists with  alignment and connection to fill point
• A fine filter comes standard in all nozzles
• Long Connector Nut to access “hard  to reach” fill points
• UL Listed

RegO’s New A6010, A6016 & A6024 Emergency Shutoff Valves

Replace 6010, 6016, 6024 & AA6010, AA6016, AA6024

Designed for installation in liquid or vapor transfer lines at LP-Gas or Anhydrous Ammonia bulk plants to provide for quick shut-off of liquid or vapor flow in the event of an accidental pull-away, line break, or hose rupture. Meets NFPA 58 and UL requirements.

New RegO Compact Back Mount Regulator LV3403BR Series

The LV3403BR Back Mount is designed to reduce first stage pressure of 5-10 PSIG down to burner pressure normally 11” w.c. Designed as a second stage regulator for smaller applications with flow requirements up to 450,000 BTU/hr. and are ideal for homes, mobile homes, and cottages.

Features • Built in ⅛” F.NPT pressure taps on both regulator inlet and outlet side of the regulator. Plugs can be removed with a 3/16” hex Allen wrench. • Large vent helps prevent vent blockage, it is tapped for ⅜” F.NPT for vent pipe away applications.• With 15 PSIG inlet pressure, the regulator is designed to not pass more than 2 PSIG downstream with the seat disc removed per UL 144 specifications. • Incorporates an integral relief valve per UL 144 specifications.• Unique bonnet vent profile minimizes vent freeze over. • Compact design saves space.

Propane Signage

Storefront Feather Flag

This 104″ tall flag sign is designed to catch a customer’s attention by constantly moving. This flag comes standard on a heavy steel base that can be bolted down to your sidewalk or parking lot, or can be left unbolted so you can bring it in each night. These feather flags move with the slightest amount of wind, so there is constant motion. They come standard with a one sided graphic, but the image is translucent so the image is seen on both sides.

Specify Filling Station (Item #DFB) or Filling Station and Cylinder Exchange (Item #DFBX)

Revolving Propane Tank

This revolving sign makes is a serious attention getter. Bold graphics are printed on lightweight / ridged corrugated plastic with a clean profile cut. The result is a clean looking graphic that takes the wind and “revolves” on the heavy-duty yard spike. (Item #DTGR)

If you don’t have a yard in which to display your Revolver, the X Base (Item #DTXBT) is perfect for hard flat ground or cement.

New! Black Winter Tough Gloves

Tough enough to withstand freezing winter temperatures.

Item #9813M (medium) and #9713L (large) In cold applications that require dexterity, these gloves provide an excellent grip, as well as insulation for warmth and comfort.

Repels oil, grease and dirt.

NEW! Two-Stage Regulators from MB Sturgis

Two-Stage Regulator #108220

The new M.B. Sturgis Two Stage Regulator has surpassed all competition in the RV market. This regulator is the “straight-through” version of the new Auto Changeover Regulator and also has the highest flow capacity in the Class A, B & C market place. The high flow rate and ability to maintain 9″ W.C. pressure at extremely high flow rates ensures that all the appliances on the coach can easily function and run a standby generator without losing gas pressure.

The Two Stage Regulator performs the same pressure reducing function of a single stage low pressure regulator, except that it does so in two stages. The first stage reduces cylinder pressure to 10 PSI and sends it to the second stage where it is reduced to 11″ W.C. Because the pressure is reduced in two stages, and because the second stage receives a consistent inlet pressure, the regulator provides a very even, efficient flow of gas.

NEW! 4-Cylinder Capacity Cabinets from American Standaard

These compact cylinder cabinets are built with the same solid construction and great features as American Standard’s larger models, but with a smaller footprint for smaller storage needs.

NEW! 420# Worthington Cylinder w/Krug 315 Hand Pump

With new low emission regulations, sometimes gravity filling isn’t possible. Teeco has combined the convenience and efficiency of our 420 Gravity Fill with the added power of a Krug Hand Pump.

Includes: 420# ASME Tank from Worthington Cylinders with Extended Foot Ring and 1 ¼” Liquid Bottom Outlet • 1 ¼” RegO A3209D050 Internal Valve • Pull Handle w/ Fuse Link • RegO A2141A6L Pull Away Valve • 15’ – ¾” Delivery Hose • RegO 7554LV w/ A7575L3 • Krug 315 Hand Pump
